CellOrganizer Options¶

Options listed for the 5 main functions of CellOrganizer. Default setting shown in brackets ([]).

img2slml¶

This function trains a generative model of subcellular location from a collection of images and saves the model to disk.

A CellOrganizer model consists of four components,

a (optional) documentation component
a nuclear membrane model
a cell membrane model and
a protein pattern model

Inputs	Outputs
dimensionality	2D/3D
dnaImagesDirectoryPath	Image path for training nuclear membrane submodel (Cell array of files or pattern)
cellImagesDirectoryPath	Image path for training cell membrane submodel (Cell array of files or pattern)
proteinImagesDirectoryPath	Image path for training vesicular submodel (Cell array of files or pattern)
options	List of options

Example:

img2slml(dimensionality, dnaImagesDirectoryPath, cellImagesDirectoryPath, proteinImagesDirectoryPath, options)

General Options¶

Generic Options¶

options.train.flag (mandatory)

Selects what model is going to be trained (‘nuclear’, ‘cell’, ‘framework’, or ‘ all’).

options.documentation.description (optional) [empty]

String for documenting the model’s description.

options.debug (optional) [false]

If set to true, then the function will (1) keep temporary results folder, (2) will print information useful for debugging.

options.masks (optional) [empty]

List holding the mask files for input images

options.save_segmentations (optional) [false]

Will save the segmentations to the model file. Setting this option to true will create a considerably large file.

options.display (optional) [false]

If set to true, then plots useful for debugging with be open. This functionality is meant for debugging only, setting this to true will considerably slow down computation.

options.model.name (optional) [empty]

Holds the name of the model.

options.model.id (optional) [randomly generated string]

Holds the id of the model.

options.model.filename (optional) [‘model.mat’]

Holds the output filename.

options.resolution (optional) [empty]

Holds the information of the dimensionality of the images

options.min_obj_size (optional) [empty]

Threshold value for determining whether the object should be saved

options.if_skip_cell_nuclear_model (optional) [false]

Boolean condition to skip building a nuclear model

options.downsampling (optional) [[1,1,1]]

The downsampling vector to be used during preprocessing.

options.python_path (optional) [user-specified]

local python path for calling point process model building.

options.verbose (optional) [false]

display extended information

options.model_prefix (optional) [N/A]

Prefix of model name

options.sampling.method (optional) [‘trimmed’]

Can be ‘disc’, ‘sampled’, ‘trimmed’

Nuclear shape submodel¶

options.nucleus.class (mandatory)

Holds the nuclear membrane model class.

options.nucleus.type (mandatory)

Holds the nuclear membrane model type.

options.nucleus.name (optional) [empty]

Holds the name of the nuclear model.

options.nucleus.id (optional) [randomly generated string]

Holds the id of the nuclear model.

options.nucleus.model (optional) [N/A]

model information of shape type

Cell shape submodel¶

options.cell.class (mandatory)

Holds the cell membrane model class.

options.cell.type (mandatory)

Holds the cell membrane model type.

options.cell.name (optional) [empty]

Holds the name of the cell model.

options.cell.id (optional) [randomly generated string]

Holds the id of the cell model.

options.cell.model (optional) [N/A]

model information of shape type

Protein shape submodel¶

options.protein.class (mandatory)

Holds the protein membrane model class.

options.protein.type (mandatory)

Holds the protein membrane model type.

options.protein.name (optional) [empty]

Holds the name of the protein model.

options.protein.id (optional) [randomly generated string]

Holds the id of the protein model.

options.protein.model (optional) [N/A]

model information of shape type

options.protein.cytonuclearflag (optional) [N/A]

flag of either ‘cyto’ or nuclear’ declaration to train

Model Specific Options¶

More information about our models can be found on our publications page .

Model Options¶

options.model.name (optional) [N/A]

Holds the name of the model

options.model.id (optional) [N/A]

Holds id of the model

options.model.filename (optional) [model.mat]

Holds the filename of the model

options.model.resolution (optional) [N/A]

Resolution of the model

options.model.microtubule.searchparams.n (optional) [N/A]

number of search parameters for microtubules

options.model.microtubule.searchparams.mullen (optional) [N/A]

mullen value

options.model.microtubule.searchparams.colli_min_number (optional) [N/A]

minimum collinear number

2D PCA¶

Learn more here

options.model.pca.latent_dim* (mandatory) [15]
- This option specifies how many latent dimensions (principal vectors or principal components) should be used for modeling the shape space. Valid values are positive integers.

2D/3D Diffeomorphic¶

Learn more here

options.model.diffeomorphic.distance_computing_method (mandatory) [‘faster’]

Uses faster distance conputing method

options.model.diffeomorphic.com_align (mandatory) [‘nuc’]

What type (cell, nucleus etc.) to align the images to

3D T-Cell Distribution¶

Learn more here

options.model.tcell.synapse_location (mandatory)

File path to annotation of the synapse positions of the T cells as input.

options.model.tcell.results_location (mandatory)

File path for where the results should be saved.

options.model.tcell.named_option_set (mandatory)

The running choice for CellOrganizer and one sensor of two-point annotation.

options.model.tcell.model_type_to_include (mandatory)

Set up for model to include.

options.model.tcell.infer_synapses (mandatory) [true]

set up the synapse inference

options.model.tcell.use_two_point_synapses (optional) [false]

Set up the mode of synapse to use, if needed you can use two-point by setting the option as true.

options.model.tcell.timepoints_to_include (optional)

If creation of models for only a subset of the time points is desired, edit to specify which time points to include.

options.model.tcell.adjust_one_point_alignment (optional) [true]

Set up alignment adjustment true or false.

options.model.tcell.ometiff (optional) [false]

If true, then it assumes images are OME.TIFFs with annotations.

options.model.tcell.sensor (optional) [N/A]

Tcell sensor options

Spharm Objects¶

Learn more here Learn more here

options.model.spharm-obj.spharm.spharm_rpdm.components (mandatory) [{‘cell’, ‘nuc’}]

This specifies which components should be included in the shape model. The valid values are {‘cell’}, {‘nuc’}, or {‘cell’, ‘nuc’}.

options.model.spharm-obj.spharm.alignment_method (optional) [‘major_axis]

method by which cells willbe aligned when producing shape descriptors. The possible values are ‘major_axis’ or ‘foe’.

options.model.spharm-obj.spharm.rotation_plane (optional) [‘xy’]

Dimensions of image that will used for alignment. The possible values are ‘xy’ (defaut), ‘xz’, ‘yz’ or ‘xyz’. For example, xy plane (around the z axis). if ‘xy‘ is specified, each cell will be rotated in the

options.model.spharm-obj.spharm.postprocess (optional) [true]

This specifies whether alignment and size normalization, should be done after parameterization. The values are ‘true’ or ‘false’.

options.model.spharm-obj.spharm.maxDeg (optional) [31]

This specifies the degree up to which spherical harmonics should be calculated. Valid values are positive integers.

options.model.spharm-obj.spharm.latent_dim (optional) [15]

This specifies how many latent dimensions should be used for modeling the shape space. Valid values are positive integers.

options.model.spharm-obj.spharm.segminnucfraction (optional) [0.17]

image size of the model

options.model.spharm-obj.ppm.sigma (optional) [5]

Standard deviation of a gaussian distribution

options.model.spharm-obj.ppm.thresPerc (optional) [0.1]

Threshold percentage of the max value after filtering the image

options.model.spharm-obj.ppm.mask_inverted_color_flag (optional) [false]

Boolean value to invert the mask colors if need be

options.model.spharm-obj.ppm.dummy_num (optional) [50]

Number of dummy points to generate per ROI (Regions of Interest)

options.model.spharm-obj.ppm.rand_num (optional) [70000]

Number of random numbers to be generated

options.model.spharm-obj.ppm.cv_mode (optional) [rd_roi]

Cross validation option to run on either ROIs (Regions of interest) or entire image (rd_img)

options.model.spharm-obj.ppm.fold (optional) [3]

Number of folds or divisions of the data to do. Equivalent to k-folds for cross validation

options.model.spharm-obj.ppm.cv_round (optional) [1]

Number of cross validation rounds to complete

slml2img¶

This function synthesizes an image from a list of SLML models. Instances may be saved in the following forms:

tiff stacks: a 3D tiff image stack for each pattern generated using the input models
OME.TIFF: saves synthetic images as valid OME.TIFF
indexed images: a single 3D tiff image stack where each pattern is represented by a number 1-n
object mesh: a .obj mesh file for each pattern generated using the input models (blenderfile option)
SBML-Spatial file: a Systems Biology Markup Language (SBML) instance XML file utilizing the Spatial extension in level 3 version 1
Virtual Cell Markup-Language (VCML): a

List Of Input Arguments	Descriptions
models	A cell array of filenames
options	A structure holding the function options

Example:

slml2img(models, options)

General Options¶

options.synthesis (mandatory)

Synthesis parameter that allows to synthesize ‘nucleus’, ‘cell’, ‘framework’ or ‘all’.

options.debug (optional) [false]

If set to true, then the function will (1) keep temporary results folder, (2) will print information useful for debugging.

options.targetDirectory (optional) [current]

Directory where the images are going to be saved.

options.prefix (optional) [‘demo’]

Filename prefix for the synthesized images.

options.numberOfSynthesizedImages (optional) [1]

Number of synthesized images.

options.image_size (optional) [1024 1024]

The image size is [1024 1024] for both 2D and 3D in x and y.

options.compression (optional) [‘lzw’]

Compression of tiff, i.e. ‘none’, ‘lzw’ and ‘packbits’

options.microscope (optional) [‘none’]

Microscope model from which we select a point spread function.

options.sampling.method (optional) [‘trimmed’]

Can be ‘disc’, ‘sampled’ or ‘trimmed’.

options.resolution.cell (optional)

The resolution of the cell and nucleus that are being passed in

options.instance.cell (optional) [empty]

A binary cell image to be filled with objects.

options.instance.nucleus (optional) [empty]

A binary nuclear image to be filled with objects.

Protein Submodel Options¶

options.overlapsubsize (optional) [0.3]

Defines the downsampling fraction to perform during object overlap avoidance.

options.overlapthresh (optional) [0]

Defines the amount of overlap that is allowed between objects.

options.protein.cytonuclearflag (optional) [cytonuclearflag included in the model]

Defines the allowable region for protein placement.

options.oobbuffer (optional) [0]

The thickness in microns of an additional buffer zone inside the boundary of a cell in which an object cannot be placed.

options.rendAtStd (optional) [2]

Defines the number of standard deviations to render Gaussian objects at.

options.resolution.objects (optional)

The resolution of the object model being synthesized

Model Specific Options¶

2D PCA¶

learn more here

options.model.pca.pca_synthesis_method (mandatory) [‘reconstruction’ or ‘random sampling’]

The method in which the generated image is synthesized.

options.model.pca.imageSize (mandatory) [1024, 1024]

image size of the resulting synthesized image

3D SPHARM-RPDM¶

learn more here

options.model.spharm_rpdm.synthesis_method (mandatory) [‘reconstruction’ or ‘random sampling’]

3D T-Cell Distribution¶

learn more here

options.model.tcell.results_location (mandatory)

File path for where the results should be saved.

options.model.tcell.named_option_set (mandatory)

The running choice for CellOrganizer and one sensor of two-point annotation

options.model.tcell.sensor (mandatory)

Set up protein name

options.model.tcell.model_type_to_include (mandatory)

Set up for model to include

options.model.tcell.use_two_point_synapses (optional)

Set up the mode of synapse to use, as a default, we use one-point, if needed you can use two-point by set up the option as true

options.model.tcell.timepoints_to_include (optional)

If creation of models for only a subset of the time points is desired, edit to specify which time points to include

Output Options¶

OMETIFF¶

options.output.ometiff (optional) [false]

Boolean flag specifying whether to write out an (.ome.tif) OME TIFF.

SBML¶

options.output.SBML (optional) [false]

Boolean flag specifying whether to write out (.xml) files with SBML-Spatial 2 representations of geometries. Default is false.

options.output.SBML.downsampling (optional) [1]

Downsampling fraction for the creation of SBML Spatial files when output.SBML or output.SBMLSpatial are true (1 means no downsampling, 1/5 means 1/5 the size).

options.output.SBML.spatial (optional) [false]

Boolean flag specifying whether to write out (.xml) file with SBML-Spatial 3 representations of geometries. Default is false.

options.output.SBML.spatialimage (optional) [false]

Boolean flag specifying whether SBML-Spatial 3 output represents geometries with image volumes instead of meshes. Meshes are not supported by Virtual Cell. Default is false.

options.output.SBML.spatialusecompression (optional) [true]

Boolean flag specifying whether to write SBML Spatial output using compression. Default is true.

options.output.SBML.spatialuseanalytic_meshes (optional) [false]

Boolean flag specifying whether to use analytic meshes instead of isosurfaces of rasterized shapes. Default is false.

options.output.SBML.spatialvcellcompatible (optional) [false]

Boolean flag specifying whether to write SBML Spatial output compatible with Virtual Cell but not the Level 3 Version 1 Release 0.90 draft specifications. Default is false.

options.output.SBML.translations (optional) [{}]

N x 2 cell array of strings (first column) to be replaced by other strings (second column) in CellOrganizer-generated SBML.

VCML¶

options.output.VCML.writeVCML (optional) [false]

Boolean flag specifying whether to write out VCML files for use with Virtual Cell.

options.output.VCML.input_filename (optional) [false]

String specifying Virtual Cell VCML file with biochemistry which will be combined with generated geometry in output file.

options.output.VCML.downsampling (optional) [1]

Downsampling fraction for the creation of object files (1 means no downsampling, 1/5 means 1/5 the size).

options.output.VCML.addTranslocationIntermediates (optional) [true]

Boolean flag specifying whether to create intermediate species and reactions for reactions involving non-adjacent translocations, which are valid in cBNGL but not Virtual Cell.

options.output.VCML.numSimulations (optional) [1]

Number of simulations in VCML file.

options.output.VCML.translations (optional) [{0,2}]

N x 2 cell array of strings (first column) to be replaced by other strings (second column).

options.output.VCML.defaultDiffusionCoefficient (optional) [1.0958e-11]

Double specifying diffusion coefficient in meters squared per second.

options.output.VCML.NET.filename (optional) [‘ ‘]

String specifying BioNetGen network file to include in VCML files for use with Virtual Cell.

options.output.VCML.NET.units.concentration (optional) [‘uM’]

String specifying concentration units in NET file.

options.output.VCML.NET.units.length (optional) [‘um’]

String specifying length units in NET file.

options.output.VCML.NET.units.time (optional) [‘s’]

String specifying time units in NET file.

options.output.VCML.NET.effectiveWidth (optional) [3.8775e-9]

Double specifying surface thickness in meters.

options.output.VCML.NET.useImageAdjacency (optional) [true]

Boolean specifying whether to derive compartment adjacency from the synthetic image. Can break Virtual Cell compatibility due to inclusion of BioNetGen representation of translocation between non-adjacent compartments.

slml2info¶

This function generates a report from information extracted from a generative model file.

Inputs	Outputs
filenames	List of files
options	Options structure

Example:

slml2info(filenames, options)

General Options¶

Generic Options¶

options.output_directory (mandatory) [‘pwd/report’]

Name of directory that the resulting report is saved as

options.labels (optional) [{}]

List of labels used for shape space plots

options.model.tcell.region_2_radius (optional) [8, 8/3]

Define the cylinder for the larger region (numerator) the radius of the ring.

options.model.tcell.region_2_thickness (optional) [4, 4]

The height of the cylinder.

options.model.tcell.region_2_start_ind (optional) [1, 1]

The index of the top of the cylinder (indices start from the top of the cell, i.e., 1 means from the topmost slice, nearest the synapse).

options.model.tcell.enrichment_region_type (optional) [‘ring’]

Define the enrichment region as the ring

options.model.tcell.should_use_global_enrichment_region (optional) [false]

Don’t use the top n% fluorescence to create the region

options.model.tcell.use_user_defined_enrichment_region (optional) [true]

Use the user defined enrichment region

options.model.tcell.enrichment_over_certain_region (optional) [true]

Calculate enrichment over a certain region

options.model.tcell.enrichment_bottom_region_type (optional) [‘top_fluorescence’]

Use intensity in this region as the denominator for calculating enrichment.

options.model.tcell.error_bar_type (optional) [‘sem’]

Set the errorbar type, either SEM or SD

options.model.tcell.save_result_filename (optional) [N/A]

Specify filename in which to save enrichment results

slml2report¶

This function generates a report comparing two SLML generative models.

List Of Input Arguments	Descriptions
model1	A generative model filename
model2	A generative model filename

slml2slml¶

This function combines multiple models into a single model file.

Inputs	Outputs
files	list of paths of models that need to be combined
options	List of options

options.selection (mandatory)

a matrix used to specify what submodels should be used from each file.

options.output_filename (optional) [“model.mat”]

the file name of output model.

Options for Galaxy¶

The main options for CellOrganizer are inluded in the user interafce of galaxy, but there is the section to include additional options. Click on the eye next to “Advanced Options” section:

Click ‘Insert Options’ to add the first additional option.

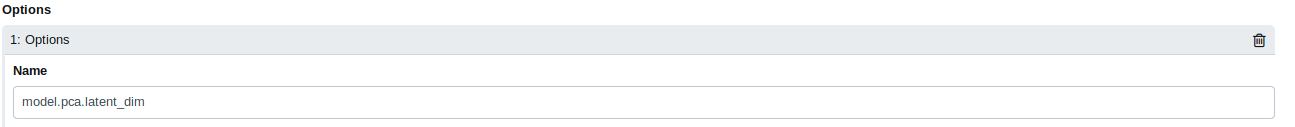

The format for including CO options in Galaxy is to include the option name in the variable field:

and the value in the next field:

To add another options, click the |insert_button| to open up another field.

Options for Docker with Jupyter Notebooks¶

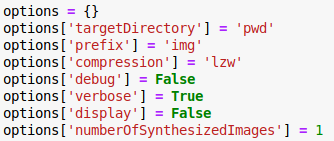

To include a CellOrganizer option while using the Docker-Jupyter Notebook distribution, please follow the format below:
